PEGATEC SERIES HOT PRESSED
<
>

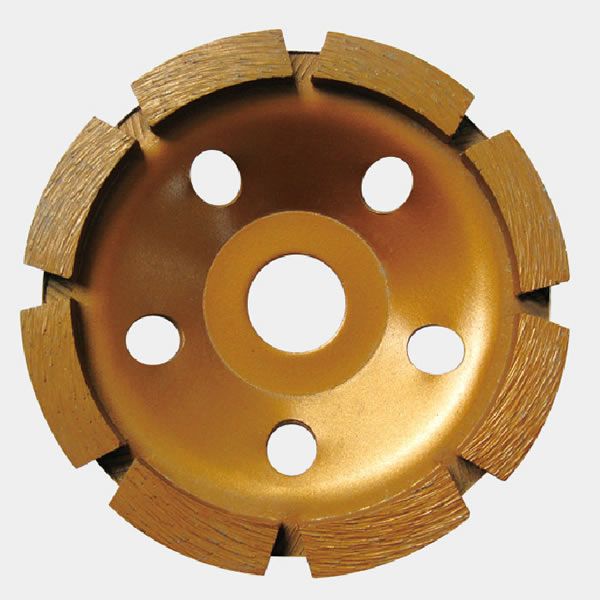

Single Row Diamond Cup Wheels

5.0x8.0x30

  • Code:Single Row Diamond Cup Wheels
The use of diamond blades is rapidly growing as people become increasingly more knowledgeable and experienced, demanding better _ nishes and faster results. With an in depth knowledge of the construction and building industry Flexovit provides a range of diamond blades to meet any demand.
  • Share:

Details

Material:
Concrete, masonry, brick, block, lime stone, high abrasives products such as sand stone.
Application:
For general application grinding and polishing stone mason products, stairs, edges of titles, base for titles and paint.
Characteristics:
The very high diamond concentration enables excellent long life, good grinding function, high efficiency and quality, suitable.


Technical Information

The use of diamond blades is rapidly growing as people become increasingly more knowledgeable and experienced, demanding better _ nishes and faster results. With an in depth knowledge of the construction and building industry Flexovit provides a range of diamond blades to meet any demand.
All Flexovit diamond blades conform to the highest European safety standard, EN13236, which ensures that all products are manufactured and tested to the highest quality. All Flexovit products are laser-marked in accordance with the requirements of EN13236.

APPLICATION
Where greater differentiation of products by application is needed, this is done through colour coding.
PERSONAL PROTECTION
Never exceed the Maximum Operating Speeds:
Hand held blades Φ ≤230mm: 80m/s
Hand held blades Φ> 230mm: 100m/s
Others : 63m/s



Dimension Height Segment Bore PK Qty
MM MM NO. MM

100

5.0x8.0x30

8

20/16 1
115 5.0x8.0x30 9 22.23/20 1
125 5.0x8.0x30 10 22.23/20 1
180 5.0x8.0x37 12 22.23/20 1
230 5.0x8.0x37 14 22.23/20 1
