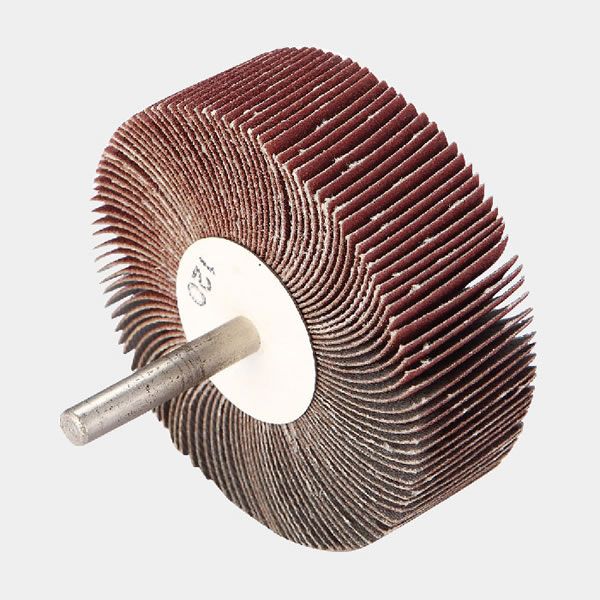

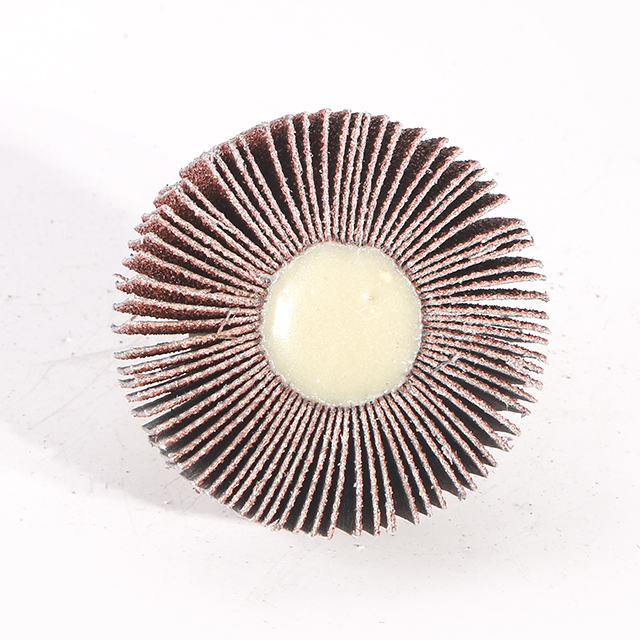

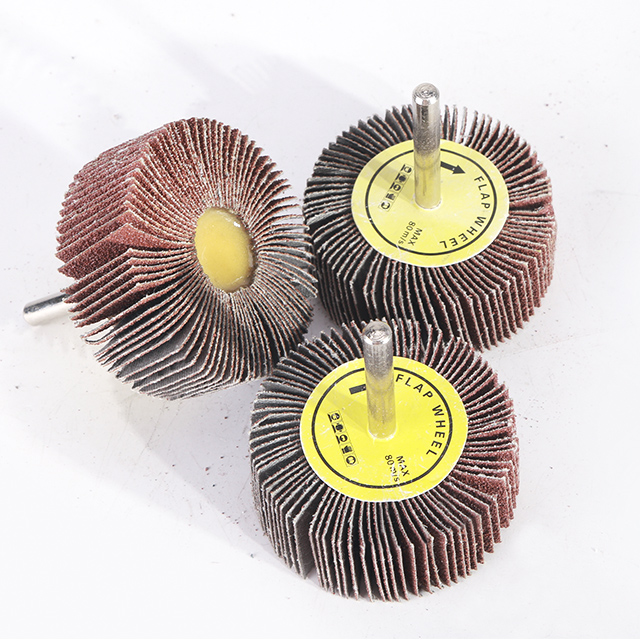

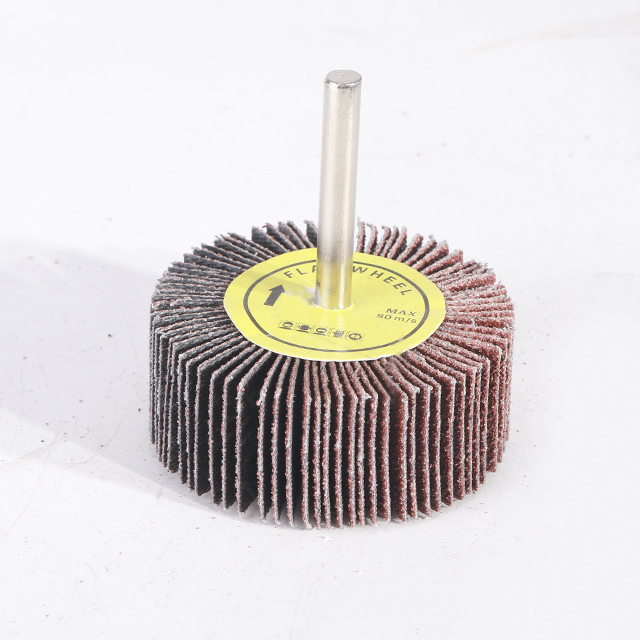

' SPINDLE MOUNTED FLAP WHEEL
SPINDLE MOUNTED FLAP WHEEL
SPINDLE MOUNTED FLAP WHEEL
Aluminum Oxide
25x25x6
Code:PFW252506A
Aluminum oxide grain, used for rough & fine grinding of metal and wood.
Share:
Aluminum oxide grain, used for rough & fine grinding of metal and wood.
Extra long durability and efficiency.
Achieve high grinding ratio.



Product Advantages

High flexibility
High abrasive ratio brought by coated abrasive.
Even blades loss, and no residue on the work-piece.
Special structure of flap wheel with shaft makes closer working to the work-piece.






Application

Tools, mould and fine grinding.
Trunk, tin and difficult contact area grinding in manufacturing processing equipment.
Non-ferrous metal or light weight alloy valve and accessories precision finishing.





Usage Advice

Perform best grinding at 15-20m/s speed. Obtain best balance of grinding ability, surface fine finishing quality, low work-piece temperature.
Different material with corresponding grinding oil can highly increase the coated abrasives working life

Affecting factors of grinding
Tool wearing and work-piece temperature load   Material grinding ratio   Surface roughness
Decrease grinding pressure, circular velocity and add grinding oil can low tool wearing and down temperature of work-piece   To gain higher grinding ratio, suggest to use rough grit instead of increasing contacting pressure.   Apply high grinding speed could gain bright and clean surface. Increasing contact pressure leads to more coarse surface.







Size Grades
Available
PCS/BOX PCS/CTN M/S EAN-CODE
Dia Material
25x25x6 Aluminum
Oxid

40#,60#
80#,100#
120#,150#
180#,240#
320#,400#

10 300 80m/s PFW252506A
30x20x6 10 300 80m/s PFW302006A
40x25x6 10 300 80m/s PFW402506A
50x25x6 10 300 80m/s PFW502506A
50x40x6 10 300 80m/s PFW504006A
60x30x6 5 150 80m/s PFW603006A
60x40x6 5 150 80m/s PFW604006A
80x50x6 5 150 80m/s PFW805006A
