' ELIMINATOR 2 IN 1 Grinding & Cutting Disc
ELIMINATOR 2 IN 1 Grinding & Cutting Disc
ELIMINATOR 2 IN 1 Grinding & Cutting Disc
Cutting&Grinding Disc
115x2.8x22.2
Code:SPC804511528

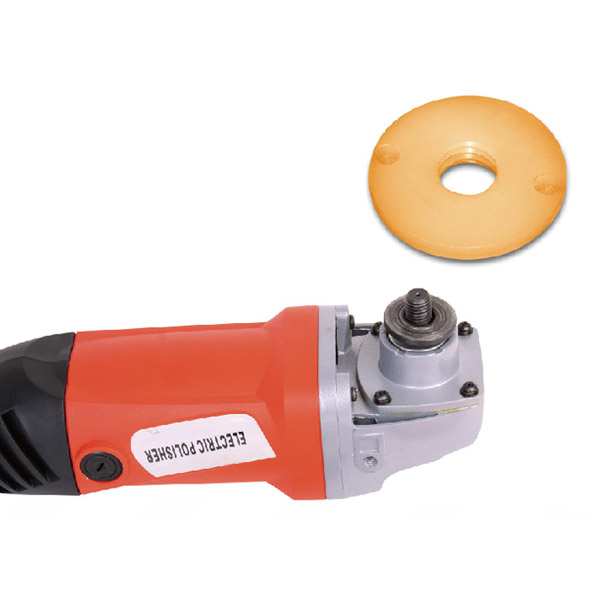

PEGATEC develops the LOCK-GO quick install buckle.It takes only
Share:

ELIMINATOR of PEGATEC applies the newest developed technology.

2 IN 1PRODUCT PEGATEC WILL BRING YOU UNPRECEDENTED EXPERIENCE OF USING

It represents the designing concept of advanced products: high efficiency of combining cutting and grinding,be used for different material, as steel, stainless steel,  stone, and polyethylene.







Product advantages Application All in One
Long lifetime
Efficient High stock removal
Comfortable cutting behavior
Multiple Duct System
2 IN 1
Material of Thin-walled tube
Various section bars
Material of Solid Pipe
Various Plates
Welds grinding
Chamfer
Surface grinding
De-burring
Hardened steels
High-alloyed steels
Structural steels
Tool steels
Stone
PVAStainless steel



How does ELIMINATOR of PEGATEC perform cutting and grinding in one?

There are many rhombic grain of different size with same shape on the surface of ELIMINATOR of PEGATEC. Each rhombic grain gather the new developed durable material. During use, the machine drives the disc to polishing at the speed of 11000 RPM(depend on the machine’s max speed and power). At this time, the sharp edge of 36 pieces rhombic grain on each round faces to the work-piece and conduct grinding.  This special physical structure gets rid of the concave-convex on the surface of work-piece smoothly via continuous grinding.



ELIMINATOR of PEGATEC decreases 0.2mm thickness based on the standard thickness-3MM.  The thickness is only 2.8MM. There are rhombic grains of different size with same shape on the surface of ELIMINATOR, the thickness of grain is only 0.1mm which cover on the base firmly. By 90°angle of cutting, frictional force generated from 36 rhombic grains cut off the work-piece quickly. Effectively cutting brings high efficiency work.



In addition to the good heat dissipation performance owned to the special physical structure of ELIMINATOR, the powerful wind generated from the high speed running of turbine shape also reject the heat quickly which shows obviously when grinding the stainless steel. Doing both of heat dissipation designing prevents secondary contamination to the workpiece.
Multiple Duct System takes away the scrap iron. When use the normal abrasive discs, there are grains flying off the safety guard. However, most of the scrap iron is taken away via Multiple Duct System which ensure the safety.
Hardened steels,High-alloyed steels, Structural steels, Tool steels, Tool steels, Stone,PVA, Stainless steel, Cast iron, Aluminum,Aluminium alloy













 EAN-Code  Dimension  mm  PCS/BOX  PCS/CTN  M/S

SPC804211528

115x2.8x22.23 50

400

80m/s
SPC804218028 180x2.8x22.23 50 400 80m/s
