Although PEGATEC always for high requirements of quality and process.but if users choose wrong application , resulting in reduced efficiency, driving tool selected measurement errors, crisis management for using and avoid security risks.in order to solve the above problems,PEGATEC provide the following informationseller to user.Reading carefully,you will obtain more than 90% solutions.
Cutting And Grinding Recommended Practice
Arrange the workpiece so that a uniform section can be cut
Cutting Plate
Cutting Square Material
Cutting Proximate Matter
GRINDING Rough Work
Do not use a cutting-off wheel for snagging
Do not work with the side of a wheel,you will cut the reinforcing cloths
Work at angle of 10 to 30 with a longitudinal action
GRINDING Finishing Work
Angle of work 15
Rotary action

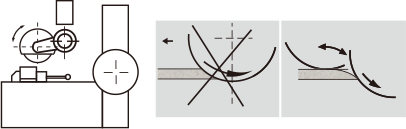

FIXED MACHINE
DOWNSTROKE HEADS

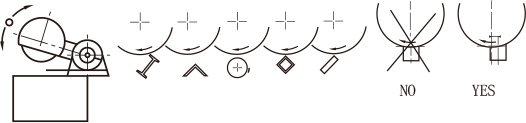

Lay out the shape parts in order to have a constant section
Avoid any wedging of the grinding wheel
Make sure the wheel is cleared
AUTOMATIC FEED
In the case of thick parts,use the
reciprocating motion of the carriage
OSCILLATING HEADS
OPERATING MODE
1 – Oscillating
2 – Cutting-off
METAL RING WITH VALIDITY DATE V=VALIDITY DATE(PRODUCTION QUARTER+3YEAR)
|
V01 | V04 | V07 | V10 |
| 1st quarter | 2nd quarter | 3nd quarter | 4nd quarter | |
|
Example: V04/2012 indicates production in the 2nd quarter of 2009 and advised usage before the 2nd quarter of 2012 |
||||
